Adding Wireless Users To Your Web Service

by Andrew Grumet (aegrumet@arsdigita.com)

Submitted on: 2000-05-01
Last updated: 2001-01-05

ArsDigita : ArsDigita Systems Journal : One article


How much does your web browser weigh? Mine weighs about 150 grams and fits in my pocket. Sound hopelessly expensive or esoteric? The browser runs inside a USD$60 cell phone, and according to a study cited recently in the Industry Standard (http://www.thestandard.com/research/metrics/display/0,2799,15258,00.html), some 484 million people will be accessing the Internet via mobile devices by 2005.

Reaching these users will take more than persuading them to go through the pain of entering your long URL on their miniaturized keypads. The central challenge is to build a useful service that is well-suited to small screens and requires minimal user input. The reward for meeting these challenges is the opportunity to expand the application space, providing your users with new types of services previously unavailable on the Web.

There are a number of standards for development of wireless web applications, but the momentum in May 2000 is strongly behind the Wireless Application Protocol (WAP) architecture. This standard is written and maintained by the WAP Forum (http://www.wapforum.org), an industry consortium including Phone.com (formerly Unwired Planet), Nokia, Motorola, Ericsson, and many more. Most Web-enabled cell phones on the market today support WAP. Alternatives for wireless application development include the Handheld Device Markup Language, a predecessor to WAP which is still supported on many cell phones, the Palm Query Application a.k.a. "Web Clipping" (Palm Pilot VII), and text-only HTML (Qualcomm pdQ smartphone, NTT DoCoMo i-mode phone in Japan).

How Does It Work?

You can serve content to wireless devices with a standard Web server:

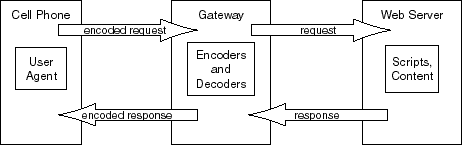

After the WAP Architecture Specification, Figure 2.

The cell phone connects to your web server through a service provider's gateway. The gateway translates encoded requests from the phone to standard HTTP GETs and POSTs, fetches the results, encodes the results, and returns the results to the phone. Data are passed between the gateway and cell phone in binary form for compact transmission, using a WAP-specific set of protocols. The gateway also manages the relatively unreliable network connection to the phone.

WAP content is delivered in Wireless Markup Language (WML) format. WML supports a somewhat different set of user interactions than HTML, and adheres strictly to the XML standard. To serve WAP devices, the Web server simply needs to return WML with the appropriate headers and tags:


HTTP/1.0 200 OK
MIME-Version: 1.0
Content-Type: text/vnd.wap.wml

<?xml version="1.0"?>
<!DOCTYPE wml PUBLIC "-//WAPFORUM//DTD WML 1.1//EN"
"http://www.wapforum.org/DTD/wml_1.1.xml">

<wml>
 <card>
  <p>Hello, world!</p>
 </card>
</wml>



WML documents are designated by the text/vnd.wap.wml Content-Type and must all be prefaced with tags indicating the XML version and document type definition. WML documents consist of any number of discrete page views, or cards. A complete document consisting of several cards is referred to as a deck. The main distinction between a deck of cards and a collection of HTML pages is that the entire deck is loaded atomically. This provides a better user experience on browsers with small displays on slow, unreliable networks.

The deck in the "Hello, world" example contains just a single card with a static message. Here is a more elaborate example:


HTTP/1.0 200 OK
MIME-Version: 1.0
Content-Type: text/vnd.wap.wml

<?xml version="1.0"?>
<!DOCTYPE wml PUBLIC "-//WAPFORUM//DTD WML 1.1//EN"
"http://www.wapforum.org/DTD/wml_1.1.xml">

<wml>

 <!-- This is the first card. -->
 <card>
  <do type="accept" label="Answer">
   <go href="#card2"/>
  </do>
  <p>What is your name:
    <input name="Name"/></p>
 </card>

 <!-- This is the second card. -->
 <card id="card2">
  <do type="accept" label="Answer">
   <go href="#card3"/>
  </do>
  <p>What is your favorite color?
  <select name="Favorite">
   <option value="red">Red</option>
   <option value="blue">No, blue!</option>
  </select></p>
 </card>

 <!-- This is the third card. -->
 <card id="card3">
  <p>Name: $(Name)<br/>
    Color: $(Favorite)</p>
 </card>

</wml>

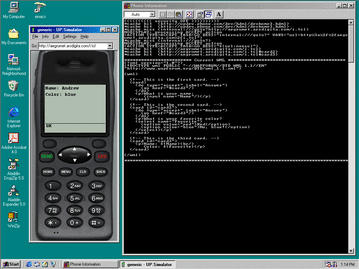

What it might look like on your phone:

First Card

Second Card

Third Card

This deck consists of three cards. The first two prompt the user for input and the third displays the results. Results are passed between cards using the document-level variables Name and Favorite. Variable substitution is effected by prefixing variables names with a dollar sign ($) and enclosing them in parenthesis. Navigation between cards is handled with go tasks inside card-level do elements. The do element provides a general mechanism for users to act on cards. The type attribute indicates what kind of action to associate with the do. An "accept" action occurs when the user hits the OK button on her cell phone. The go task plays a role similar to the HTML form element, containing a target URL and optionally query data and method type. The notable difference here is that user interface code appears outside the go task.

Development environment

Most discussions of WAP-development jump immediately to the various software development toolkits available from the cell phone and browser vendors (listed below). Consider first the caveman-style approach to developing WAP applications. You sit at the computer with your cell phone. You type away at the keyboard making changes to server code. You load the pages on your cell phone. You iterate. This approach has the advantage of realism: you're forced to tap out URLs using the smaller phone keypad, view content on the small screen, and wait for the slow network to respond. The downside? You're forced to tap out URLs using the smaller phone keypad, to view content on the small screen, and wait for the slow network to respond. Oh yes, and then there's the matter of those per-minute microbrowser charges from your service provider.

Real development requires a mixture of simulators and phones with emphasis on the former. The simulators are particularly useful for exploring navigation and user experience strategies, checking dynamically generated WML source, refreshing cached pages, and tracking cookies. Telnet can also come in handy, as exemplified below.

Case studies

Case 1: Conference seminar schedule

I was asked to develop a WAP interface to the developer conference site ArsDigita is building for a Fortune 500 software company. My colleagues and I decided that the most natural WAP application for this kind of site would be a seminar schedule that enables conference attendees to look up seminar topics, times, and locations at the push of a button.

At the push of a button. The first thing that hits you when working with WAP phones is the tedium of entering site URLs on numeric keypads: each letter is entered by pressing the appropriate number key and then, if necessary, repeating to select one of three or four letters associated with the key. This point was driven home when an MIT student asked me to review a WAP page he was working on for the web applications class I help teach at MIT (http://6916.lcs.mit.edu). The URL for the page was something akin to http://lcswww75.lcs.mit.edu/register/wap-login.tcl. Typing this URL on a Samsung SCH-3500 takes about 85 keystrokes after legally omitting the "http://", with roughly half of the keystrokes devoted to "/register/wap-login.tcl" (As an aside, this should teach you something about the economics of WAP portals.) When I asked the student why he hadn't provided navigation through a shorter URL, he said, "Oh, I always used a PC-based simulator so it never occurred to me."

This situation can be ameliorated by having the top-level index page try to guess the appropriate document type and redirect the browser accordingly. Here is the algorithm used for the developer conference site:

  1. Pull the User-Agent string out of the request headers and compare the first four characters against a list of known WAP microbrowsers (an updated list is maintained at http://wap.colorline.no/wap-faq/useragents.php3).
  2. If no match is found, redirect to an HTML page.
  3. If a match is found, pull the Accept string out of the request headers and search for "text/vnd.wap.wml".
  4. If no match is found, redirect to an HTML. Otherwise, redirect to a WML page
This scheme is somewhat pessimistic in that WML is only served to a limited set of known WAP user agents. Is this reasonable? The Accept header should provide all the information necessary to perform content negotation. Sadly, a number of browser vendors do not obey HTTP 1.1 in this regard. The popular UP.Browser, for example, includes text/html in the list of accepted content types in spite of the fact that it fails upon trying to load HTML. Curious to see how other webmasters approached the problem, I performed a little experiment on www.yahoo.com:

bash-2.01$ telnet www.yahoo.com 80
Trying 216.32.74.55...
Connected to www.yahoo.akadns.net.
Escape character is '^]'.
GET / HTTP/1.1
User-Agent: UP.Browser
Accept: text/html


HTTP/1.0 302 RD
Location: http://phone.oa.yahoo.com/http://login.mobile.yahoo.com/

Connection closed by foreign host.

Despite the request for text/html, Yahoo! redirected to a phone site. I could also download HTML with an Accept header containing only text/vnd.wap.wml. Bottom line is that with the current state of protocol compliance, the User-Agent header conveys better information than the Accept header.

At the heart of the conference schedule service lies information about individual seminars. This information is served dynamically from the same database tables that are used for the HTML version of the site. However, the display and user experience constraints are quite different for desktop web browsers and wireless devices. With long seminar titles like "Power Development Strategies using Java Technology, XML, J2EE, and Oracle8i", for example, even a moderately long list of seminars could make for a great deal of scrolling on a 12-character wide screen. There are basically two ways to reduce the need for scrolling. The first approach is to pass all strings through a function which truncates to an acceptable length, perhaps truncating preferentially at whitespace. Drill-down navigation through the conference schedule is handled in this way. A second approach is to override line-wrapping by using paragraph tags with the mode attribute set to "nowrap".

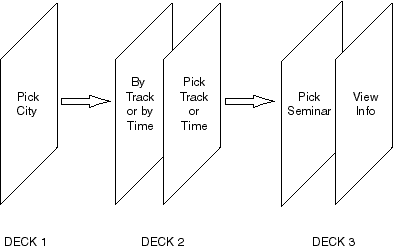

Building the conference schedule user experience was an exercise in navigation design: help the user arrive at seminar cards as efficiently as possible. The conference is a travelling show making stops in major cities around the world, so we first prompt the user to choose a city from a short list including the meeting currently in session and the five upcoming sites. We also present an option to view a list of all cities including past events. Individual seminars are organized into a number of themed tracks which run simultaneously over the course of two days. Having picked a city, the user is given the choice of locating seminar information by track or by starting time, followed by a list of tracks or starting times. Upon picking a particular track or time, the user is presented with a list of seminars each linking to a card with the seminar name, location, time, and track.

Since a number of cards can be stacked into one document it is worth acknowledging that you have some choice in structuring WML documents. In theory, an entire site could be loaded into a single deck! In practice, most microbrowsers have document size limit of about 1200-1500 bytes. Furthermore, the publisher may wish to instruct the browser to selectively not cache some information. Here is the site structure for wireless users:



Case 2: ArsDigita employee phone directory

My original motivation to learn this material came from a simple wish: to be able to easily contact any of my colleagues at ArsDigita, even if none of us happened to be logged in or at our office desks. All of the needed contact information (home, office, and mobile phone numbers) was already web-accessible through the ArsDigita Community System's intranet module (http://www.arsdigita.com/doc/intranet), which we use to run the company.

As with the conference calendar, the primary task was to put a WAP front end on existing data. ArsDigita's intranet is, unlike our software, not open to the public. User login pages were needed to restrict access. These pages were implemented in a parallel fashion to the existing HTML pages, calling the same backend scripts but instead presenting the results in WML. Just like in the ArsDigita Community System (ACS), cookies are used to identify logged-in users. In my experience cookies work well provided you do not deviate from the magic cookie spec (available from http://home.netscape.com/newsref/std/cookie_spec.html). Notably, avoid using commas, spaces, and semi-colons in the cookie value. The user's email address on our intranet is also their username, so to save typing, a default email domain ("@arsdigita.com") is appended if necessary when the user logs in.

In May 2000, ArsDigita is about 160 people. To look up an individual's information, I implemented a search tool instead of drill-down navigation. Searches may be performed on the first few characters of the user's first name, last name, or email address (by which some of us are primarily known). The search tool will return a single employee card if one match was found, a list of employees (linking to employee cards) if 2-10 matches are found, and a request to narrow the search if more than ten employees are found.

Thanks to the Web Telephony Application Interface (WTAI) it is a fairly simple matter to "link to" a phone number, saving the user from otherwise having to:

  1. copy or memorize the requested number,
  2. quit their microbrowser,
  3. dial the number to make the call.
The WTAI provides a means to create telephony applications from within a WML page. WTAI functions are named using uniform resource identifiers (URIs) resembling wtai://<library>/<function>(;<argument>)*. Given a phone number from a search, e.g. 617-555-1212, the following link
wtai://wp/mc;6175551212
enables dialling. This link utilitizes the Make Call function (mc) in the Public WTAI library (wp).

The dark side of this scheme: there are a variety of ways to lump phone number digits depending on what country you happen to live in. For this reason, the keepers of our Intranet have been content to store phone numbers as free-form SQL varchars rather than segmented into integer fields such as the North American 3-digit area code + 3-digit exchange + 4-digit suffix. What I do is search the phone number field for a 3-3-4 pattern and link to it if a match is found. If no match is found, I pull out all digits from the field and provide the user with an edit box prior to linking. This fallback strategy, while not as elegant, still saves the user from having to copy and re-enter the digits.

Beyond the basics

Learning a new markup language isn't particularly interesting in and of itself. WML could die. That might even be nice---one less markup language to learn. Mobile accessibility is certainly valuable, as it allows you to share your services with a much larger class of users. Serving up linkable phone numbers to a phone is even more interesting, since it provides a new type of service previously unavailable on the Web. Another new type of service, which is perhaps not yet a reality, is the marketers' dream of personalized, geo-spatialized advertising. Imagine turning on your WAP browser mid-day to find the following message looking back at you:

Hungry for pizza?
PizzaShack
123 Main Street
Only 3 blocks away!
1> Large pie
2> Large Soda
-------------------
Order

To summarize, beyond accessibility, the real value of WAP lies in application frameworks like the WTAI.

In the examples above we created sets of WML pages to serve essentially the same content as their sister HTML pages, with little effort or emphasis devoted to consolidation of common tasks like pulling data out of the database. The maintainable approach is to use a single procedure to obtain data, and then any of several separate rendering tools on the server or browser to generate appropriate markup. This approach is typically what is being described when the eXtensible Markup Language (XML), XML style sheets (XSL), and the XSL style sheet tranformation language (XSLT) are invoked. Note that this approach does not necessarily eliminate the need to maintain parallel sets of display information: if you add a field to the lone datasource, you'll still have to update all templates or stylesheets with directions on where the new field is to appear. Note also that the need to maintain parallel sets of display information is not directly tied to the existence of multiple markup languages per se. A truly impressive service would distinguish among additional dimensions such as spoken language, bandwidth, and screen size.

Employee phone directory: Retrospective

After 3 months' of use, the ArsDigita employee phone directory has proved stable, if still catching on. One pitfall revealed by early use was that certain HTML escape characters do not constitute valid WML. Searches that returned a German colleague's name, for example, resulted in an error message becuase ü ("u" with an umlaut) was encoded in the database as &uuml, whereas WML requires the alternate encoding, &#252;.

More

General WAP/WML information:

SDK's and WAP-enabled browsers are available from

Web Application Programming tools

Other
